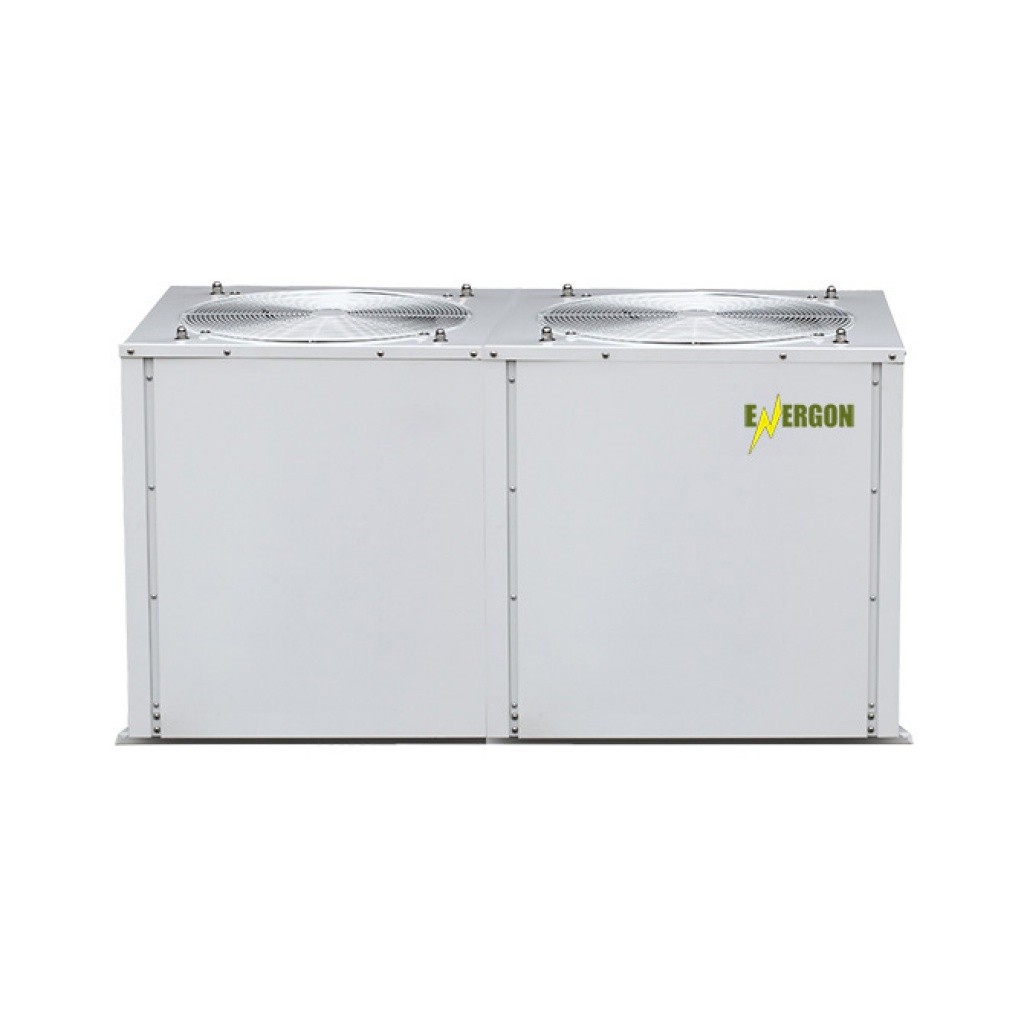

Energon AXAI-15 Artemis 19Kw – 10.5Kw – 13.8Kw

Άμεσα διαθέσιμο

Compare
Κατηγορία:

1. High efficient compressor, plate heat exchanger and fan of advanced technology,featuring in reliable effient performance and low operation noise
2. SAGInoMIYA electronic expansion valve with accurate control of refrigerant flow and more energy-efficient.
3. Large hydrophilically coated heat exchanger(fin-coil),extracting more heat from ambient air,with high COP and stable operation even in low ambient temperature.
4. Automatic defrosting function included(with reverse valve inside).
5. Thick galvanized and superior static coating metal plate with salt spray test gains stronger corrosion resistance.
6. Fast return on investment and widely applied in the commercial sector suitable for office building, hotel, school,restaurant and etc.

AXAI – 15

TECHNICAL DATA ARTEMIS-7 ARTEMIS-10 ARTEMIS-14
Heating1
(A7/W35)
Nominal capacity kW 7.1 10.5 13.8
Power input kW 1.67 2.40 3.14
COP W/W 4.26 4.39 4.39
Heating2
(A7/W45)
Nominal capacity kW 6.8 10.0 13.2
Power input kW 2.07 2.94 3.86
COP W/W 3.28 3.41 3.41
Heating3
(A7/W55)
Nominal capacity kW 6.5 9.6 12.6
Power input kW 2.66 3.72 4.86
COP W/W 2.45 2.59 2.59
Cooling1
(A35/W18)
Nominal capacity kW 7.0 11.3 14.4
Power input kW 2.07 3.29 4.17
EER W/W 3.36 3.45 3.45
Cooling2
(A35/W7)
Nominal capacity kW 4.8 7.8 9.5
Power input kW 2.11 3.31 4.00
EER W/W 2.28 2.36 2.36
Power supply V/Ph/Hz 220-240/1/50 380-415/3/50
Max. leaving water temperature 58
Working temperature range -15 – 43
Refrigerant type R410A
Compressor Rotary Scroll
Water circuit Heat exchanger  Plate heat exchanger
Water pump(option) OPTION ( Hydro box )
Net Dimensions   HxWxD mm 710×920×

350

710×920×

350

1330×902×

320

Net Weight Kg 63 73 92
Noise level dB(A) 54 54 58
